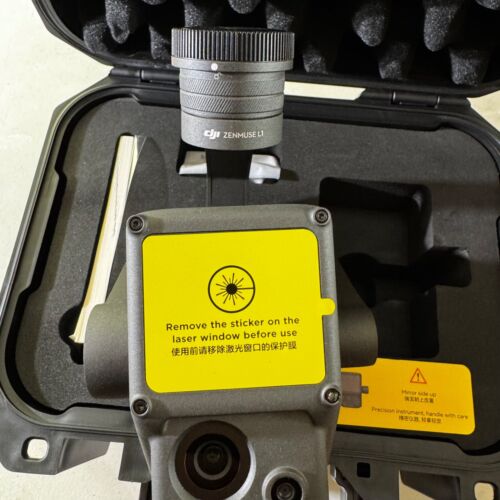

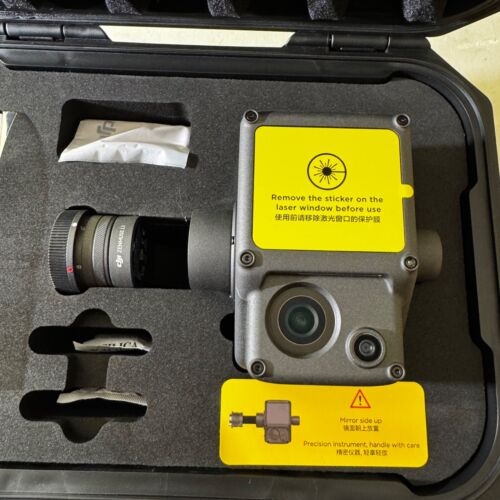

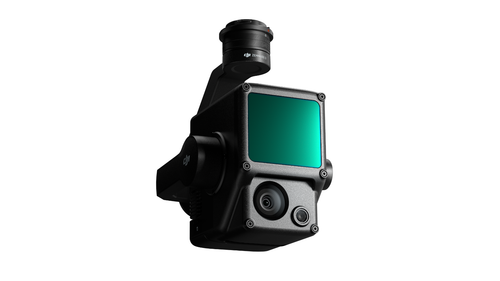

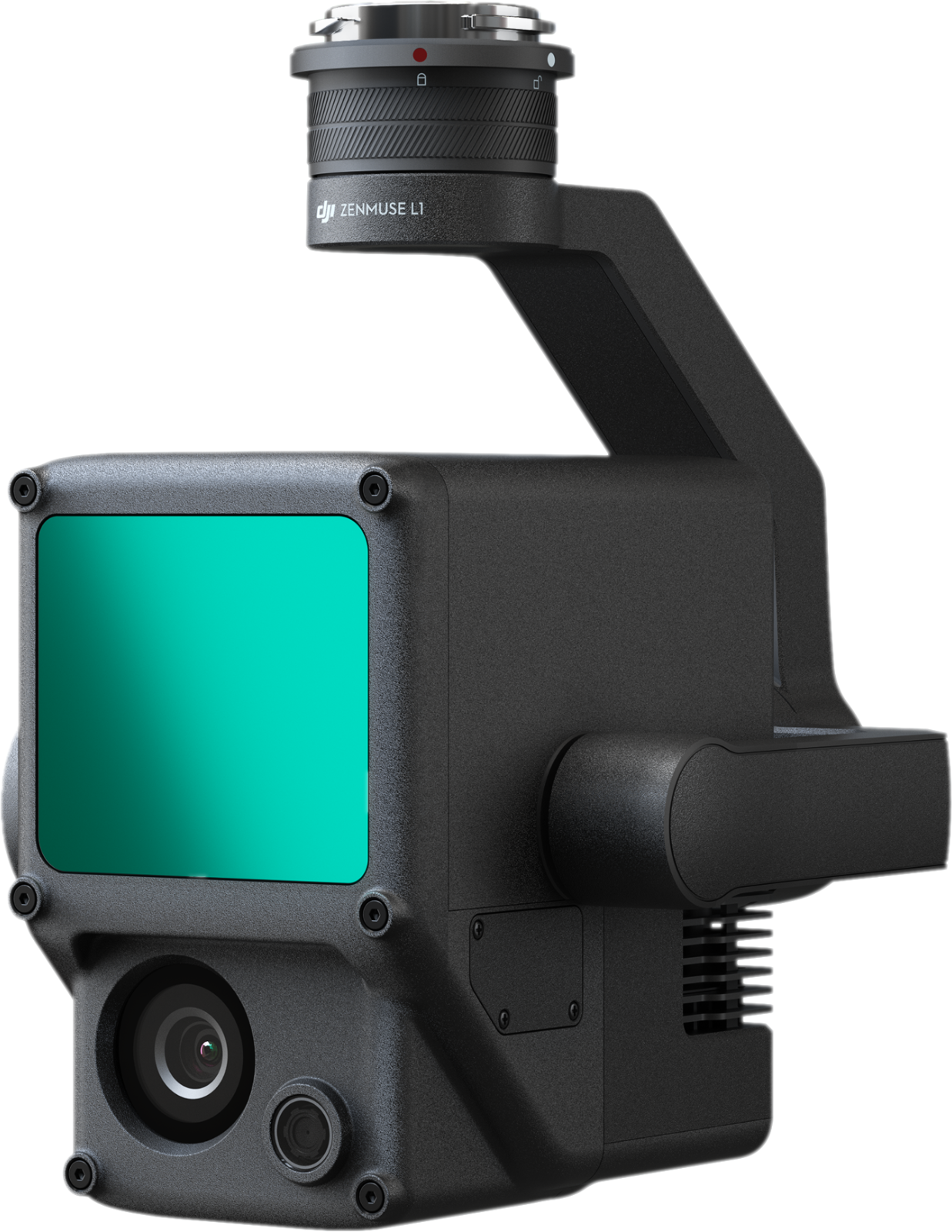

DJI Zenmuse L1 Lidar & RGB Gimbal Camera

This DJI Zenmuse L1 is a game-changer for aerial mapping and surveying, providing high-accuracy lidar and RGB imaging. With its advanced technology and user-friendly design, you'll be able to capture stunning images and data with ease. The Zenmuse L1 is perfect for professionals and hobbyists alike, offering a reliable and efficient solution for your aerial photography needs. Whether you're working on a large-scale project or just want to take your drone photography to the next level, this lidar camera is the perfect tool for the job.

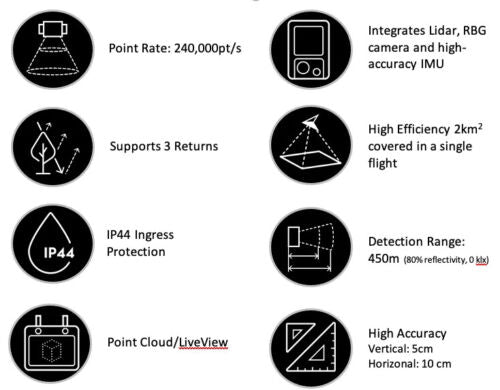

Key features

• 1. LiDAR Sensor

• Livox Avia LiDAR:

  • Range: Up to 450 m (reflectivity ≥ 80%)

  • Accuracy: ±3 cm (typical)

  • Field of View (FoV): 70.4° (non-repetitive scanning) for wider coverage

  • Point Cloud Rate: Up to 240,000 pts/sec

  • Multiple Returns: Captures 3 returns per pulse for better detail in vegetation and complex structures

• 2. High-Resolution RGB Camera

• 20 MP CMOS Sensor

• Mechanical Global Shutter: Reduces motion blur for sharp images

• 1" Sensor Size: Better low-light performance

• Used for: Colorizing point clouds, creating orthomosaics

• 3. Integrated Inertial Measurement Unit (IMU)

• High-Precision IMU + GNSS:

  • IMU Accuracy: 0.025° (tilt)

  • Supports PPK (Post-Processed Kinematics) & RTK (Real-Time Kinematic) for cm-level accuracy

• 4. 3D Mapping & Modeling

• Real-Time Point Cloud Generation: Viewable in DJI Terra software

• Multiple Scan Modes:

  • Non-Repetitive Scan: Better coverage efficiency

  • Repetitive Linear Scan: Higher point density for detailed structures

• 5. Weather & Environmental Resistance

• IP54 Rating: Dust and water-resistant

• Operating Temp: -20°C to 50°C (-4°F to 122°F)

• Works in Low-Light & Night Conditions (LiDAR is active sensing, unlike photogrammetry)

• 6. Compatibility & Software

• Supported Drones: Matrice 300 RTK, Matrice 350 RTK

• Software:

  • DJI Terra (for 3D modeling, point cloud processing)

  • LiDAR360, AutoCAD, Pix4D (third-party support)
